Description

Toyota Hiace Van Airlift Airbag Suspension Load Assist Kit

1986-1994 | 2004-2018 | 2019-2025

Rear Air Helper Springs with Internal Jounce Bumpers
For Heavy-Duty Towing & Load Support | Rear Axle Suspension Enhancement | 5,000 lb Capacity

Overview:
Get serious support for your truck or RV with the LoadLifter 5000 Ultimate. These heavy-duty air springs from Air Lift combine the adjustability of air suspension with the built-in safety of internal jounce bumpers. Whether you’re hauling heavy loads or towing trailers, this hybrid spring system smooths the ride, protects your suspension, and keeps you level—front to back and side to side.

Key Benefits:

• Hybrid spring design: Air springs + internal jounce bumpers for max performance

• Full load support: Up to 5,000 lbs of load-leveling capacity

• Stay level: Levels vehicle under load and maintains safe headlight aim

• Independent adjustment: Balance uneven or off-center loads

• Stronger control: Improved handling, steering, and braking

• Enhanced comfort: Jounce bumpers reduce sway, soften the ride, and help cornering

• Failsafe support: Carry temporary loads even if air pressure drops

• No bottoming out: Jounces absorb shock at low pressure

• Reliable construction:

  • 2-ply fabric-reinforced rubber air bags

  • High-strength, corrosion-resistant Zytel® nylon endcaps

  • Maintenance-free urethane jounces

  • Upper & lower roll plates to protect air bags

Specs:

• Load-leveling capacity: Up to 5,000 lbs (does not increase max payload rating)

• Adjustable air pressure: 5–100 psi

• Manual air lines and inflation valves included (mount easily on bumper)

• Compatible with on-board air systems (sold separately)

• Made in the USA

• Warranty: Lifetime warranty + 60-day satisfaction guarantee

Perfect For:
3/4-ton and 1-ton pickups, RVs, and commercial trucks carrying heavy or uneven loads.

Why It Matters:
Uneven loads and heavy towing wear down your suspension, brakes, and tires. The LoadLifter 5000 Ultimate adds strength where you need it, giving you better control, a smoother ride, and peace of mind—especially when the road gets rough.

The air bags also have Air Lift’s exclusive roll plates, which protect the air springs and beef up their load capacity. These sturdy plates help guard the springs from moving parts under your vehicle that might puncture the air bags. The plates also provide a larger surface area for each spring to roll on. The extra surface area gives you a higher spring rate at a lower air pressure, resulting in a better ride.

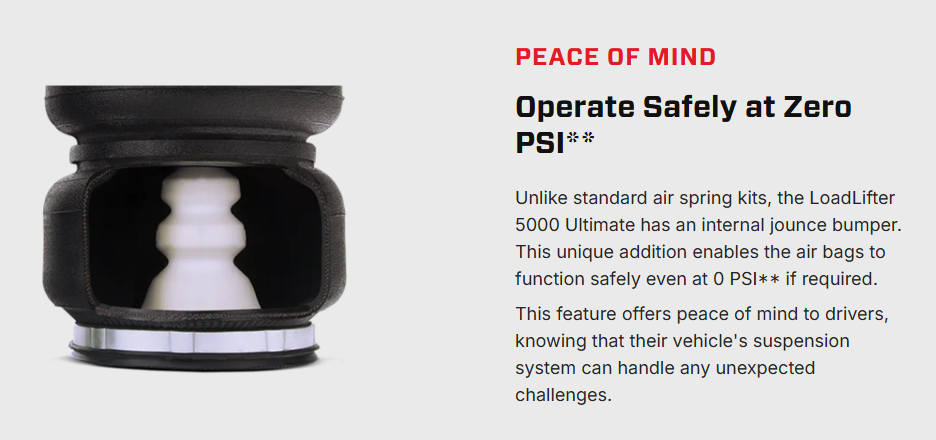

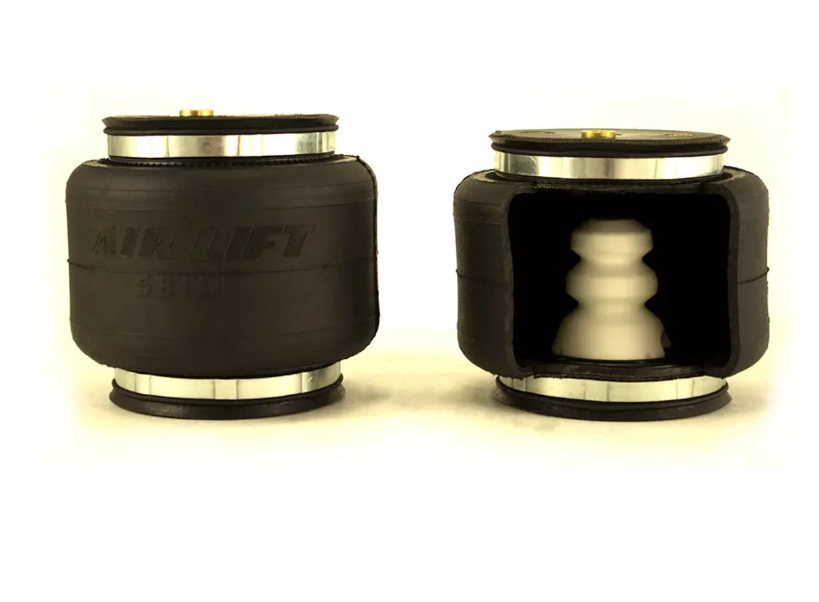

Built-In Jounce Springs Add Control and Comfort

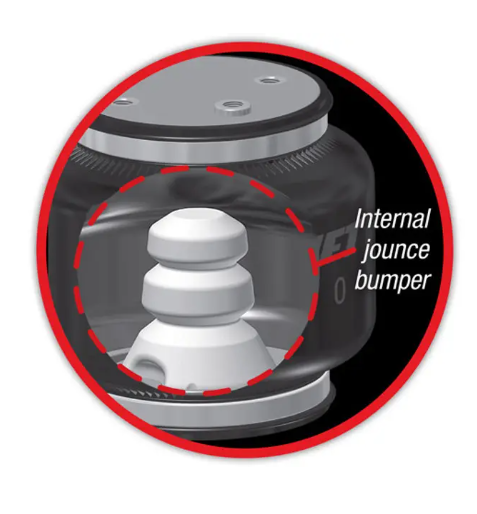

The closed-cell urethane jounce spring inside each air spring gives you a more stable, comfortable ride. Each jounce acts as an overload spring and engages when your current air pressure level isn’t enough to support your load. So on a rough road, the springs will kick in if needed to absorb bumps and shocks and help you to avoid bottoming out. When the jounces support a load, they adjust progressively – the more weight you pile on, the stiffer they become. The urethane material engages more smoothly than rubber jounces so you get a less jerky ride.

Because these jounces are taller than your factory jounce bumpers, they engage sooner than your factory jounces would to provide better support. And if the LoadLifter 5000 Ultimate air springs have insufficient or zero air pressure, the internal jounces will help to temporarily support your suspension and protect it from damage until you can repair or adjust the air spring system.

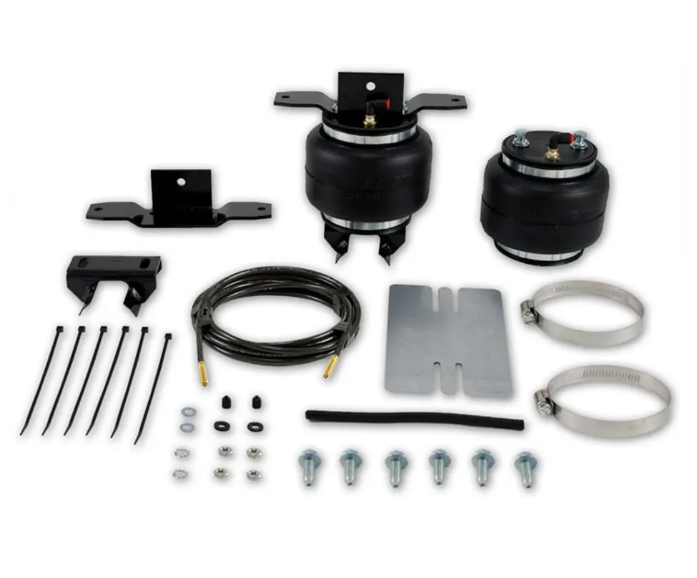

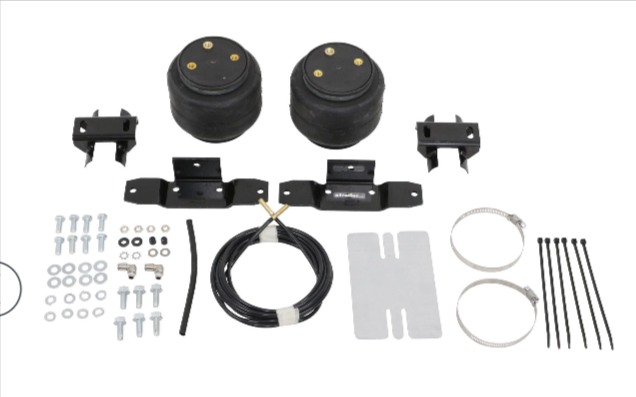

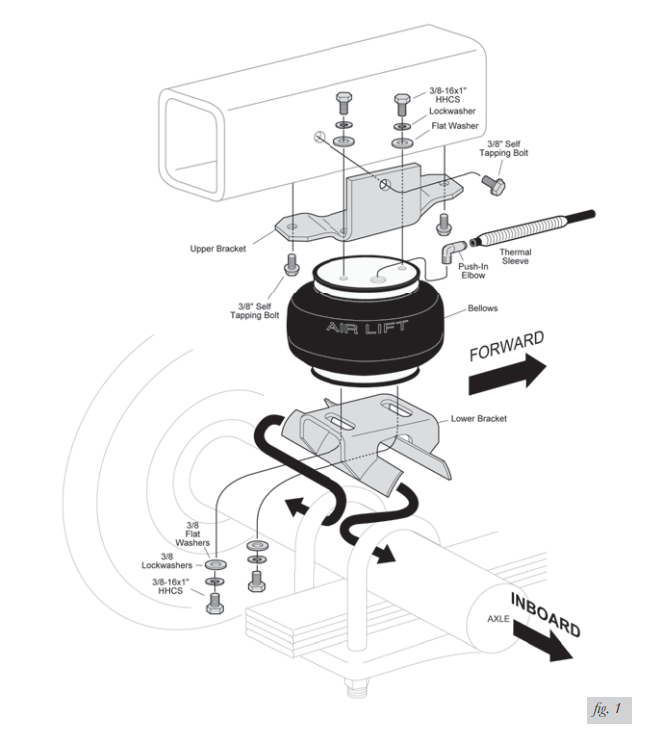

Easy Installation

This system installs with the included brackets and hardware. Just mount the springs, inflate them, and ride. To inflate the LoadLifter springs, you just have to pump in air through the inflation valves. A line kit is included with the springs so that you can install the manual inflation valves (1 for each spring). These are typically mounted on the bumper but can be installed anywhere that is easily accessible. If you want to make the springs even easier to use, you can get a compressor and gauge system (sold separately) that allows you to monitor and adjust the springs from the cab of your truck.

Lifetime Warranty

Along with a lifetime warranty that has no mileage restrictions, Air Lift offers a 60-day satisfaction guarantee. Just install and use LoadLifter 5000 Ultimate springs for 60 days, and if you are not satisfied at the end of this time, you can remove and return them for a full refund.
