Ford Econoline Hydraulic Leveling System – Central/Quad Pump System | Manual / Automatic | Weld-on/Bolt-on for E350 | E450

Models: AKC-E4502, AKC-E4501, AKC-E3502, AKC-E3501, MQ-E4501 and more. Contact me if you have questions or need help, and for Estimate, with possible discounts.

Upgrade your Ford E-Series with professional-grade hydraulic leveling systems. Whether you want a centralized one-touch setup or full independent control, we’ve got you covered.

🔧 Common Features (AKC Series)

• One-touch auto-leveling. Fully automatic with manual override.

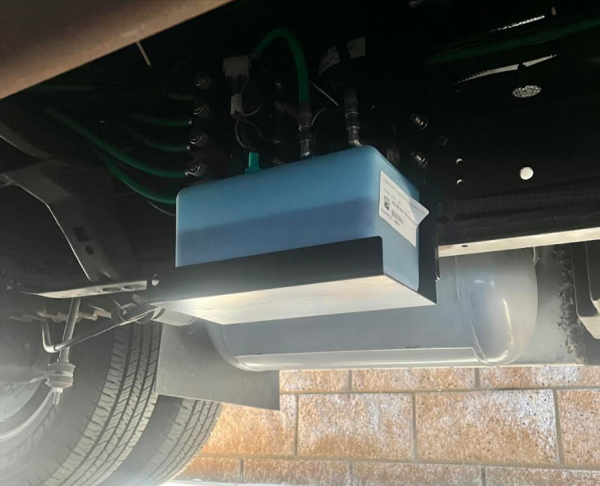

• Centralized hydraulic pump. Marine-grade, U.S.-built pump & motor in a sealed steel case – mounts externally to save space.

• All-Up Safety Alert. Warns if any jack isn’t fully retracted before moving.

• Manual controls. Operate cylinders independently if needed.

• Heavy-duty lift. Powder-coated cylinders made in-house, rated 8,000 lbs each.

• Lifetime Cylinder Warranty.

• Complete install kits. All hardware, hydraulic lines, and components included.

🔍 Model Details

✅ AKC-E4502 – Bolt-On Kit for Ford E-450

• Bolt-on front cylinders; rear can bolt or weld.

• Works with some older or low-clearance E-450 models.

• Check rear suspension type—two-stage air systems may need bracket mods.

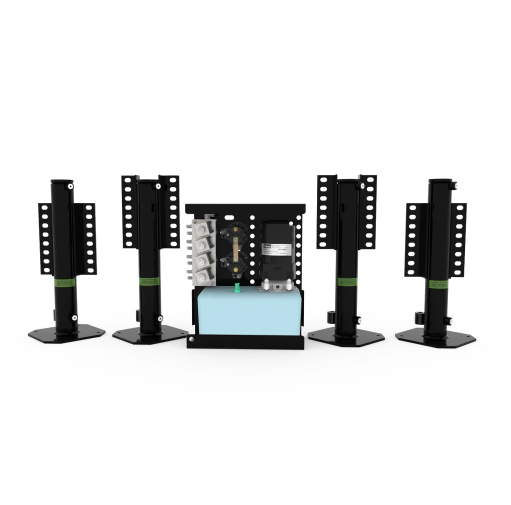

✅ AKC-E4501 – Weld/Drill Kit for Ford E-450

• Drill or weld install only.

• Designed for newer E-450 chassis.

• If frame-to-ground clearance under 15″, use E-350 kit (shorter cylinders).

• Need longer hoses? Add Hydraulic Hose Extension Kit (#M5219).

✅ AKC-E3502 – Bolt-On Kit for Low-Riding or Older E-450

• Shorter front cylinders for better ground clearance.

• Ideal for older or lowered E-450 setups.

✅ AKC-E3501 – Standard Kit for Ford E-350

• Short front cylinders to match E-350 frame height.

• Fully compatible with all standard E-350 cutaway chassis.

🧠 Attention: Vehicles 5+ Years Old

Measure from the bottom of the frame (near front axle control arm bracket) to the ground on level surface:

• If under 15”, use the E-350 kits for correct clearance.

• Skip this step and risk extra install fees for cylinder swaps.

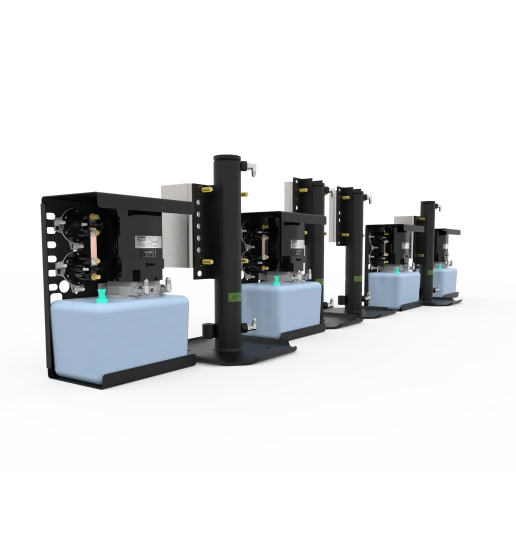

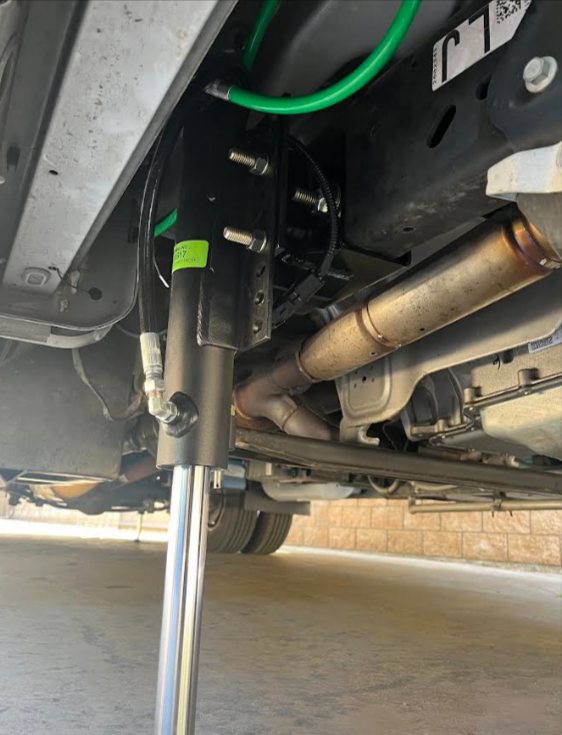

🔥 MQ-E4501 – Manual Quad System for 1992+ Ford E-450

A more hands-on, independent setup – ideal for full control.

• Four independent hydraulic cylinders (double acting: power up & down)

• Four marine-grade hydraulic power units – one per jack

• Massive 100 in² footpads – extra stability on soft or uneven ground

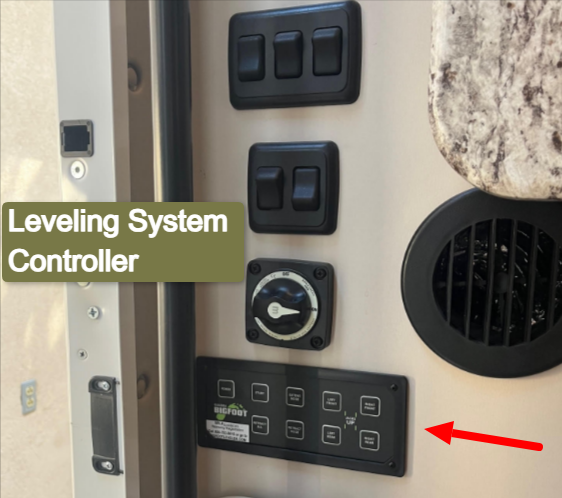

• Manual controller with:

  • Individual LED retract indicators

  • Emergency retract override

  • Ignition alarm

  • Full manual adjustability

• Includes: Weld-on brackets, battery cables, hydraulic lines, and all hardware
