Ford Econoline RV Suspension Lift Kit – 5-Inch Front & Rear for E350 & E450 Vans
Elevate your Ford Econoline E350 and E450 Class B RV with this 5-inch suspension lift kit. Engineered to enhance ride quality and ground clearance, this kit is perfect for navigating uneven terrain or simply boosting the look of your motorhome.

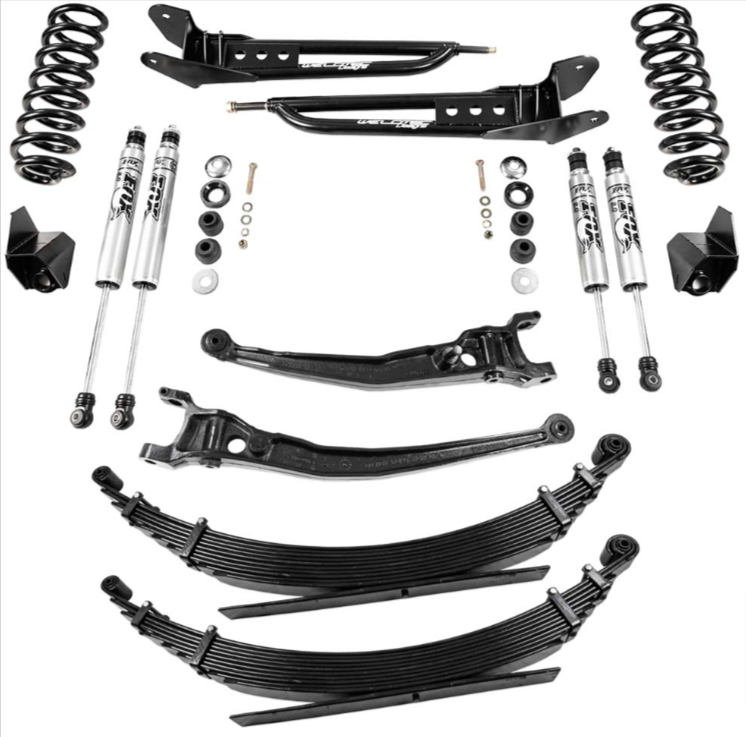

Kit Components:
-
Custom Extended Radius Arms (Qty 2): Provides improved suspension geometry and stability.
-
Radius Arm Brackets (Qty 2): Weld-on brackets for a more secure fit.
-
MOOG Radius Arm Pivot Bushings (Qty 2): Durable bushings for long-lasting performance.
-
Skyjacker Lift Coils (Qty 2): Heavy-duty coils that offer enhanced support and better ride quality.
-
Sway Bar Drop Brackets (Qty 2) [2008-CURRENT ONLY]: Includes all necessary hardware for easy installation.
-
Modified I-Beams with MOOG Pivot Bushings (Qty 2): Upgraded beams for smoother handling.
-
Fox 2.0 Performance Series IFP Shocks (Qty 4): Nitrogen-pressurized shocks designed for optimal control under heavy loads.
-
Progressive Rear Leaf Springs (Qty 2): Custom rear springs designed for your RV’s weight, offering a smoother ride. (Price may vary depending on the weight of your RV)
-
Ford E-Series Ubolts (Qty 2): Strong, reliable bolts to secure the suspension.
Key Features:
-
Improved Ground Clearance: This 5-inch lift kit ensures better access to campsites and reduces scraping on uneven surfaces.
-
Enhanced Ride Quality: The combination of Skyjacker lift coils, Fox Shocks, and progressive leaf springs creates a smooth, controlled ride on rough roads.
-
Stability & Performance: Custom radius arms and upgraded I-beams maintain ride stability and vehicle alignment.
-
Ideal for 2WD Models: Perfectly designed for 1992-2007 & 2008-CURRENT Ford Econoline E350 and E450 2WD Class B RVs.
Important Installation Details:
-
Vehicle Weight: Your RV must be weighed for proper spring sizing. We recommend using a DMV weigh station or CAT Scale for accurate weight readings.
-
Leaf Pack Configuration: Check for any existing 2-3” blocks already added to the rear end by the manufacturer or previous owner. This may affect your required lift height.
-
Core Charge: A refundable $500 core charge applies when your old I-beams are returned within 30 days. The customer is responsible for return shipping costs.
Additional Information:
-
Year Compatibility: 1992-2007 | 2008-CURRENT
-
Model Compatibility: Ford Econoline E350 & E450 2WD Class B RVs
-
Lift Amount: 5” Front & Rear
-
Wheel Travel: 8” Front | 5” Rear
-
Tire Size Compatibility: Consult with us for correct sizing based on your RV setup.
This Ford Econoline 5-inch suspension lift kit is designed to provide an enhanced driving experience, increased ground clearance, and superior stability for your RV adventures. Whether you’re cruising through rough terrains or just upgrading the look of your vehicle, this kit ensures your Ford Econoline stays on top of its game.We Do Installs in Portland, Oregon.
