Ford E-Series E150 | E250 | E350 | E450 Airbag Suspension Air Lift LoadLifter 5000 Ultimate Air Helper Springs

Description

Airbag Suspension Air Lift LoadLifter 5000 for

1989-1996 / 1997-2013 / 2014+ Ford E-Series

E150 | E250 | E350 | E450

Contact Richard, he can help you

find and install all your Ford Van needs.

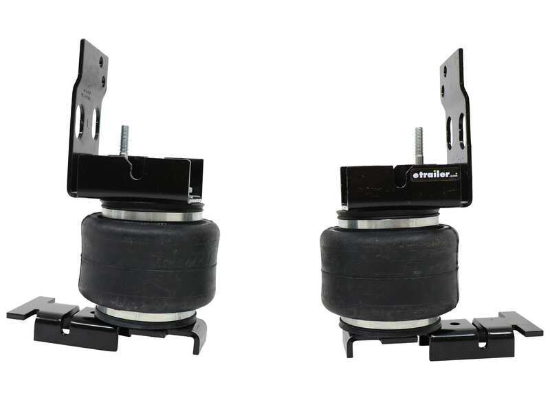

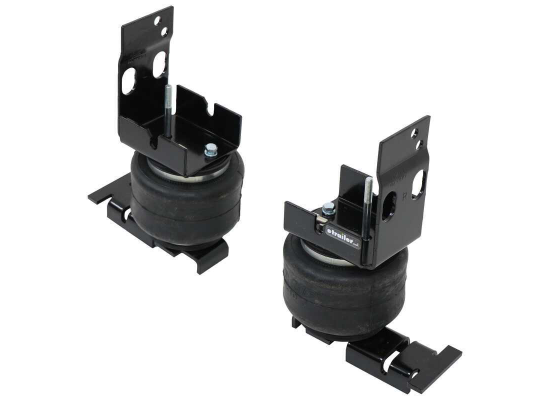

Air Lift LoadLifter 5000e Ultimate –

Ford Econoline Van Rear Air Suspension Kit

Upgrade your Ford Econoline’s rear suspension with the

Air Lift LoadLifter 5000e Ultimate. Designed for heavy-duty performance, this system combines the adjustability of air springs with the built-in fail-safe of internal jounce bumpers. It’s perfect for vans carrying heavy or uneven loads.

Key Features:

• 5,000 lb Load Capacity – Reinforces your rear suspension for towing, hauling, or uneven weight distribution

• Hybrid Spring System – Combines adjustable air springs with maintenance-free internal jounce bumpers

• Enhanced Ride & Safety – Levels the vehicle front to back for better steering, braking, and headlight aim

• Side-to-Side Leveling – Independently adjust each spring for off-center loads

• Fail-Safe Protection – Internal jounce bumpers engage if air pressure is lost, preventing bottoming out

• Progressive Support – Firmness increases as the load increases for a smoother ride under heavy weight

• Zero Pressure Operation – Can temporarily carry loads with no air in the bags

• Durable Construction

  • 2-ply fabric-reinforced rubber air springs

  • Exclusive upper/lower roll plates to protect against wear

  • Lightweight, corrosion-resistant Zytel® nylon end caps

  • Urethane internal jounce bumpers perform in all weather

• Complete Kit Includes:

  • Air springs

  • Mounting brackets

  • Hardware

  • Manual inflation valves and air lines

• Optional Add-On: In-cab compressor and gauge system (sold separately) for on-the-fly air pressure adjustment

• Made in the USA

• Fits: Heavy-duty applications, including Econoline vans, ¾-ton and 1-ton trucks, motorhomes, and commercial vehicles

Specs:

• Load-leveling capacity: up to 5,000 lbs
  • LoadLifter 5000 Ultimate springs will not increase your vehicle’s weight-carrying capacity. Do not exceed the manufacturer’s recommended weight limit.
• Adjustable air pressure: 5 psi – 100 psi
• Lifetime warranty
• 60-Day satisfaction guarantee

Get the Best of Both Springs

The air springs and jounce springs in this system work together to give you the best ride whether your truck is loaded or unloaded. Air Lift’s LoadLifter 5000 Ultimate air springs have internal urethane foam jounces that protect the air springs and provide added ride comfort when your air pressure is low. The jounces also allow you to temporarily carry a load if the air springs lose air pressure. This gives your 3/4- or 1-ton pickup, motor home, or commercial truck air springs that are easier to maintain.

Air Springs Level Your Load

Carrying heavy cargo in your truck bed or trailer puts extra stress on your truck. Your brakes erode faster, your tires wear unevenly, and handling suffers severely. When towing, you might also experience excessive sway, bottoming out, and even inaccurate and unsafe headlight aim.

By pairing your existing suspension with LoadLifter 5000 Ultimate air springs, you can seriously beef up your suspension, ensure equal load distribution, and get the support you need. The springs provide up to 5,000 lbs of load-leveling capacity (depending on the weight-carrying capacity of your vehicle) and distribute the weight of your payload to all 4 wheels. As a result, the stress on your factory suspension is significantly reduced. LoadLifter’s air bags are adjustable from 5 to 100 psi for precise support, and they can be inflated equally for front-to-back leveling or independently of one another for side-to-side leveling.

The air springs are made of high-quality, 2-ply, fabric-rehttps://countryoffroad.com/wp-content/uploads/2025/02/13358_1024x768_a-1.jpgrced rubber. Most air bags lose air at the ends where the bag is enclosed with steel caps. These caps can rust and corrode over time, creating small holes. But the endcaps on Air Lift air bags are fashioned from corrosion-proof Zytel nylon, a material that is both stronger and lighter than steel, ensuring that the air bags won’t lose air.

The air bags also have Air Lift’s exclusive roll plates, which protect the air springs and beef up their load capacity. These sturdy plates help guard the springs from moving parts under your vehicle that might puncture the air bags. The plates also provide a larger surface area for each spring to roll on. The extra surface area gives you a higher spring rate at a lower air pressure, resulting in a better ride.

Built-In Jounce Springs Add Control and Comfort

The closed-cell urethane jounce spring inside each air spring gives you a more stable, comfortable ride. Each jounce acts as an overload spring and engages when your current air pressure level isn’t enough to support your load. So on a rough road, the springs will kick in if needed to absorb bumps and shocks and help you to avoid bottoming out. When the jounces support a load, they adjust progressively – the more weight you pile on, the stiffer they become. The urethane material engages more smoothly than rubber jounces so you get a less jerky ride.

Because these jounces are taller than your factory jounce bumpers, they engage sooner than your factory jounces would to provide better support. And if the LoadLifter 5000 Ultimate air springs have insufficient or zero air pressure, the internal jounces will help to temporarily support your suspension and protect it from damage until you can repair or adjust the air spring system.

Easy Installation

This system installs with the included brackets and hardware. Just mount the springs, inflate them, and ride. To inflate the LoadLifter springs, you just have to pump in air through the inflation valves. A line kit is included with the springs so that you can install the manual inflation valves (1 for each spring). These are typically mounted on the bumper but can be installed anywhere that is easily accessible. If you want to make the springs even easier to use, you can get a compressor and gauge system (sold separately) that allows you to monitor and adjust the springs from the cab of your truck.

Lifetime Warranty

Along with a lifetime warranty that has no mileage restrictions, Air Lift offers a 60-day satisfaction guarantee. Just install and use LoadLifter 5000 Ultimate springs for 60 days, and if you are not satisfied at the end of this time, you can remove and return them for a full refund.

88138 AirLift Load Lifter 5000 Ultimate Air Springs with Internal Jounce Bumpers – Rear Axle

Installation e-series econoline ford airbag suspsension lift installation instructions 88138

This Product Fits The Following Vehicles

• 2007 – 2009 Winnebago Access Motorhome 22B
• 2007 – 2007 Winnebago Access Motorhome 24V
• 2008 – 2013 Winnebago Access Motorhome 24V – E-350
• 2012 – 2013 Holiday Rambler Aluma Lite Motorhome 23RB
• 2011 – 2011 Holiday Rambler Aluma Lite Motorhome 23RB – Triton
• 2005 – 2007 Winnebago Aspect Motorhome 23D
• 2007 – 2007 Winnebago Aspect Motorhome 26A
• 2008 – 2009 Holiday Rambler Atlantis Motorhome 121 – Triton
• 2008 – 2009 Holiday Rambler Augusta Motorhome 213 – Triton
• 2008 – 2008 Holiday Rambler Augusta Motorhome 214 – Triton
• 2008 – 2009 Holiday Rambler Augusta Motorhome 235S – Triton
• 2015 – 2016 Holiday Rambler Augusta Motorhome 23B
• 2010 – 2010 Holiday Rambler Augusta Motorhome 23RBS – Triton
• 2015 – 2016 Holiday Rambler Augusta Motorhome 25K – E-350
• 2012 – 2013 Holiday Rambler Augusta Motorhome 25PCS
• 2011 – 2011 Holiday Rambler Augusta Motorhome 25PCS – Triton
• 2016 – 2022 Gulf Stream BT Cruiser Motorhome 5210
• 2016 – 2022 Gulf Stream BT Cruiser Motorhome 5230
• 2019 – 2022 Gulf Stream BT Cruiser Motorhome 5240
• 2017 – 2022 Gulf Stream BT Cruiser Motorhome 5245
• 2019 – 2019 Gulf Stream BT Cruiser Motorhome 5255
• 2000 – 2000 Coachmen Catalina Sport Motorhome 195RK
• 2007 – 2007 Winnebago Chalet Motorhome 22B
• 2008 – 2008 Winnebago Chalet Motorhome 24V
• 2011 – 2011 Thor Chateau Citation Motorhome 21BC – Ford
• 2010 – 2010 Four Winds Chateau Motorhome 19G
• 2009 – 2010 Four Winds Chateau Motorhome 21RB – Ford
• 2010 – 2010 Four Winds Chateau Motorhome 23A – Ford
• 2009 – 2009 Four Winds Chateau Motorhome 23A – Triton
• 2011 – 2012 Thor Chateau Motorhome 19G

• AL88138
